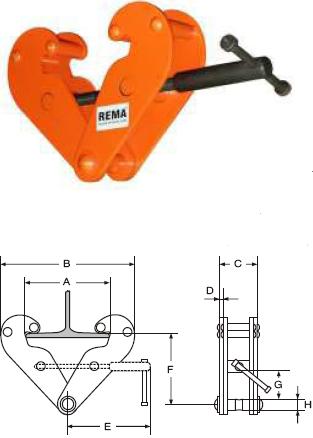

Gerendamegfogó |
| | | Típus | Teherbírás | Pofa
nyílás | Méret mm | Súly | | | t | mm | A
max | B
min | B
max | C
| D
| E
| F
min | F
max | G
| H
| J
| kg | | KSB 1 | 1000 | 75-220 | 260 | 180 | 360 | 64 | 5 | 215 | 102 | 155 | 25 | 22 | 20 | 5,5 | | KSB2 | 2000 | 75-220 | 260 | 180 | 360 | 74 | 6 | 215 | 102 | 155 | 25 | 22 | 20 | 6,0 | | KSB3 | 3000 | 80-320 | 354 | 235 | 490 | 103 | 8 | 260 | 140 | 225 | 45 | 24 | 38 | 11,5 | | KSB5 | 5000 | 80-320 | 354 | 235 | 490 | 110 | 10 | 260 | 140 | 225 | 45 | 28 | 38 | 12 | | KSB 10 | 10000 | 90-320 | 400 | 250 | 520 | 120 | 12 | 280 | 160 | 230 | 70 | 44 | 38 | 17 |
|
|
